Description
Unheated Hardened Steel Platens – For smooth surface pressing which comes in 4 different sizes. See Reference Table below.

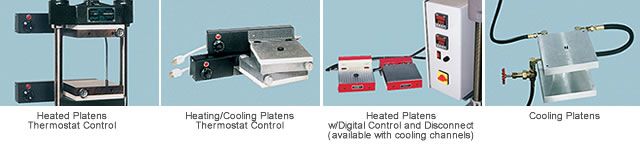

| For Presses Catalog Number/Model | Platen Size (in) | Heated Platens Thermostat Control | Heated Platens Digital Control | Heating/ Cooling Platens Thermostat Control | Heating/ Cooling Platens Digital Control | Cooling Platens |
|---|---|---|---|---|---|---|
| 3393/MiniC 3850/Mini C 2086/Model C 3851/Model C 2112/150-C 4130/150-C | 6 x 6 | 2101 (115V) aluminum 150 to 500° F | 3796 steel to 650°F (115V) | 2103.1 steel 150 to 500°F | 3772 steel to 650°F with hoses (115V) | 2104 aluminum with valve and hose assemblies |
| 2102.1 (115V) steel 150 to 500° F | ||||||
| 2105 (115V) aluminum, cored for steam heat | 4286 steel to 650°F (230V) | 3988 steel to 650°F with hoses (230V) | ||||
| 2089/Model M 3853/Model M | 9x 9 | 2107.1 (115V) steel 150 to 500°F | 3973 steel to 650°F (230V) | 2108.1 steel 150 to 500°F | 3972 steel to 650°F with hoses (230V) | |
| 2109 steel, cored for steam heat | ||||||
| 2114/154-M 4131/154-M | 9x 12 | 2644 aluminum 150 to 500°F | 2645 aluminum, with valve and hoses assembles | |||
| All four-column presses | 12×12 | 3906 steel to 650°F (230V) | 3749 steel to 650°F with hose assemblies (230V) | |||
| NOTE: 230V option available on selected above platen kits. Temperature reading in deg C also available upon request. Temperature Calibration available for digitally controlled platens. Part# 1525.00003 High Temperature Platen Presses are available. Click here for details. (CE / CUL Available for Digital Controls Only) | ||||||
| Hardened Steel Platens | ||
|---|---|---|
| For Presses Catalog Number/Model | Platen Size (in) | Unheated Platens |
| 3850 (3393) Mini C 3851 (2086) Model C | 6″ x 6″ | 5023 Set of (2) Hardened Steel Platens |
| 3853 (2089) Model M | 9″ x 9″ | 5024 Set of (2) Hardened Steel Platens |
| Four-column presses | 12″ x 12″ | 5151 Set of (2) Hardened Steel Platens |
| 15″ x 15″ | 6308 Set of (2) Hardened Steel Platens | |
| Recommended for smooth surface pressing | ||
| Digital Control Assemblies for Existing Hotplates | |
|---|---|
| Catalog Number | Description |
| 3984 | For 6″ x 6″ work areas, 230 volt |
| 4490 | For 6″ x 6″ work areas, 115 volt |
| 4578 | For 9 ” x 9″ work areas, 230 volt |
| 4609 | For 12 ” x 12 ” work areas, 230 volt |
| Dial Face Thermometers | |
| 385001 | Dial face thermometer 150°F to 750°F |
| 385019 | Dial face thermometer 50°C to 400°C |
