300kN XFS Floor Standing Universal Testing Machine
Mid-capacity powerhouse for versatile industrial testing. UK-manufactured precision with AC servo drive technology delivering superior performance across diverse materials.
Mid-Capacity Power Meets Industrial Precision
Optimized for versatile industrial testing applications, the XFS 300kN delivers exceptional capacity with unwavering accuracy across diverse material types and testing protocols.
300kN Precision Capacity
Mid-range 300kN capacity with ±0.5% accuracy conforming to BS EN ISO 7500-1 Class 0.5. Perfect balance of power and precision for comprehensive industrial materials testing.
Advanced AC Servo System
High-performance servo motor with precision ball screw mechanism ensures consistent, reliable testing with exceptional repeatability. Minimal maintenance requirements for maximum uptime.
WinTest Professional Software
Industry-leading Windows-based testing software featuring real-time graphing, customizable test methods, and comprehensive automated reporting for streamlined quality control workflows.
Industrial-Grade Construction
Heavy-duty steel frame with enhanced structural rigidity and premium powder-coated finish. Engineered for stability and long-term durability in demanding production environments.
Extended Testing Versatility
Comprehensive crosshead speed range (0.001-1000 mm/min) with 1200mm test space enables diverse testing applications from slow creep analysis to high-speed tensile tests.
UK Engineering Excellence
Designed and manufactured in the United Kingdom to world-class quality standards. Testometric's 50+ years of engineering heritage ensures unmatched reliability and global support.
Complete Technical Specifications
Detailed specifications for the XFS 300kN Floor Standing Universal Testing Machine
| Specification | Value |
|---|---|
| Maximum Load Capacity | 300 kN |
| Load Cell Accuracy | ±0.5% of indicated load down to 1/500 of load cell capacity (BS EN ISO 7500-1 Class 0.5) |
| Load Cell Specification | ±1% of indicated load down to 1/250 of load cell capacity (BS EN ISO 7500-1 Class 1.0) |
| Load Resolution | 1/500,000 of load cell capacity |
| Test Space (Height) | 1200 mm |
| Frame Width | 680 mm (internal) |
| Crosshead Speed Range | 0.001 to 1000 mm/min (infinitely variable) |
| Position Accuracy | ±0.01 mm |
| Crosshead Return Speed | Up to 1000 mm/min |
| Drive System | AC Servo motor with precision ball screw |
| Overall Height | 2650 mm |
| Overall Width | 750 mm |
| Overall Depth | 650 mm |
| Machine Weight | Approximately 750 kg |
| Power Supply | 230V AC, 50/60Hz, Single Phase |
| Software | WinTest Analysis Suite (Windows-based) |
| Data Output | USB, Ethernet connectivity |
| Compliance Standards | ISO 7500-1, ASTM E4, BS 1610, DIN 51221 |
Versatile Testing Across Industries
The XFS 300kN UTM is ideal for mid to heavy-duty materials testing applications across multiple sectors
Advanced Composites
Structural Metals
Industrial Textiles
Packaging Systems
Aerospace Materials
Steel & Alloys
Wood & Laminates
Manufacturing QC
Product Development
Medical Equipment
Building Components
Automotive Parts
Watch Testometric UTMs at Work
Experience the precision and reliability of Testometric Universal Testing Machines
3:45 Fabric Tensile Testing
UTM demonstration on textile materials with precision grips

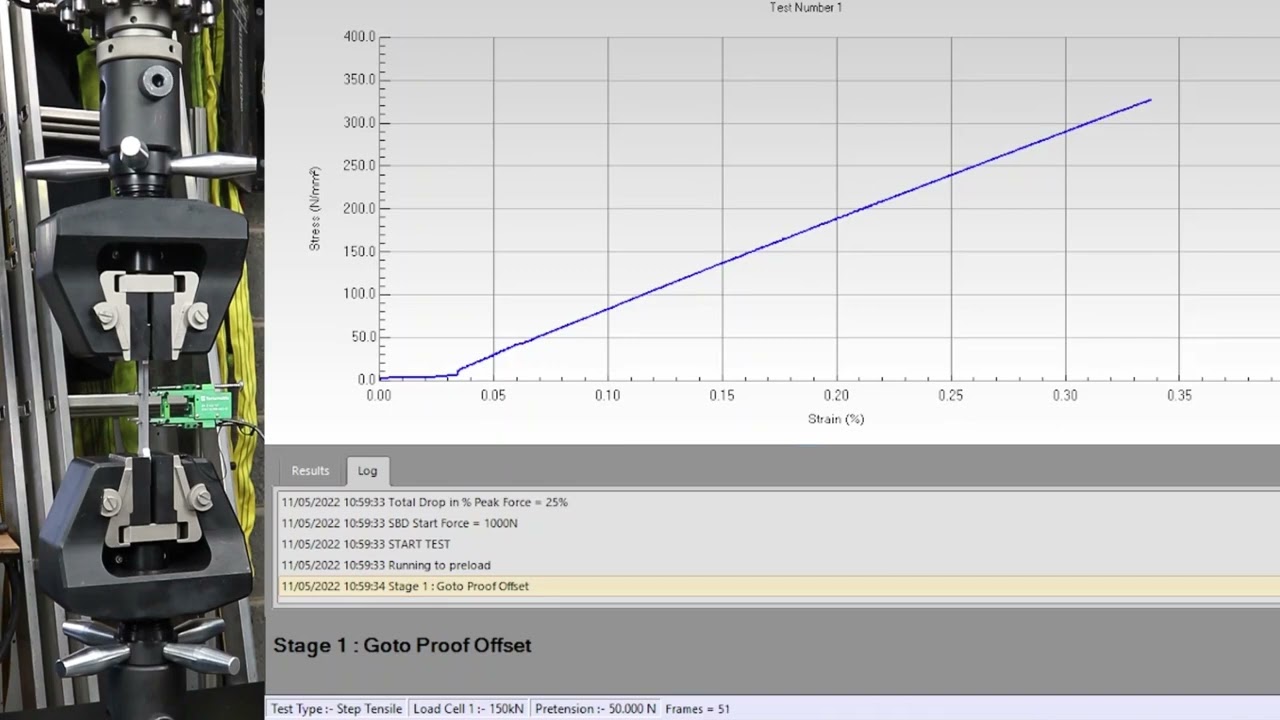

4:12 Metal Tensile Testing
Metal specimen tensile test with extensometer
2:58 Yarn Tensile Test
Single yarn strength testing with precision fixtures

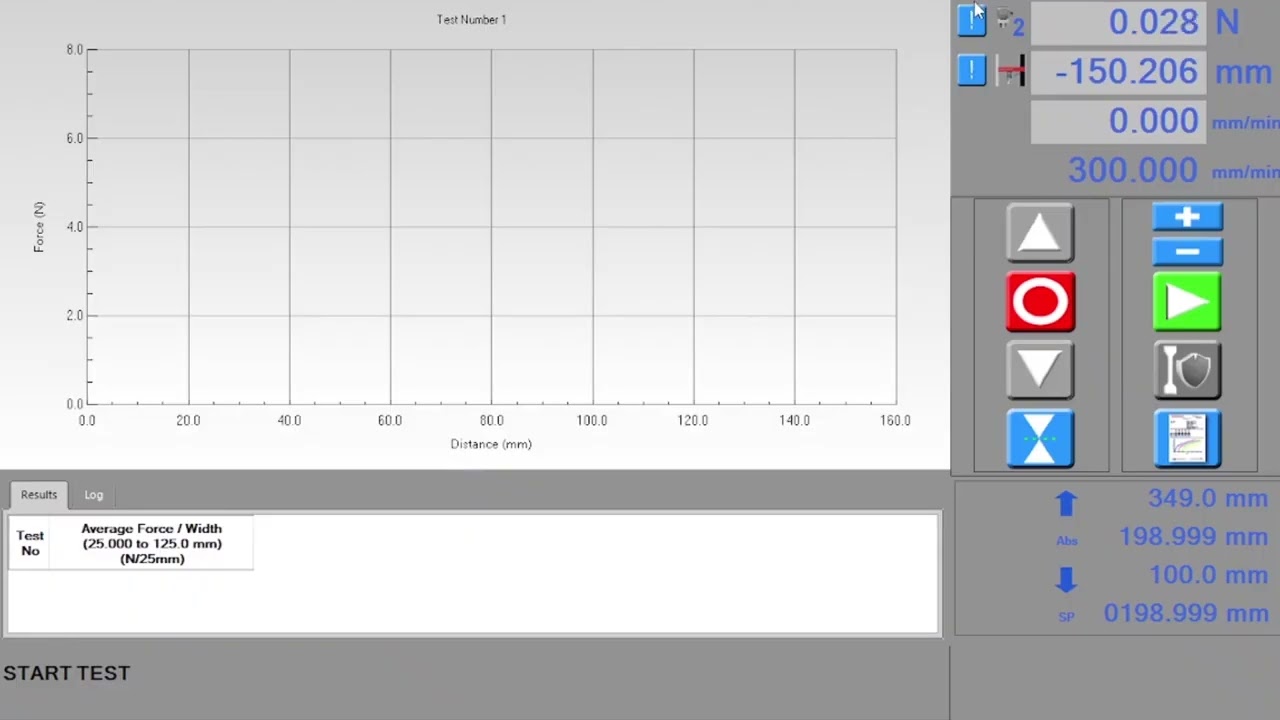

5:20 Peel Strength Testing
90° peel adhesion test for packaging materials

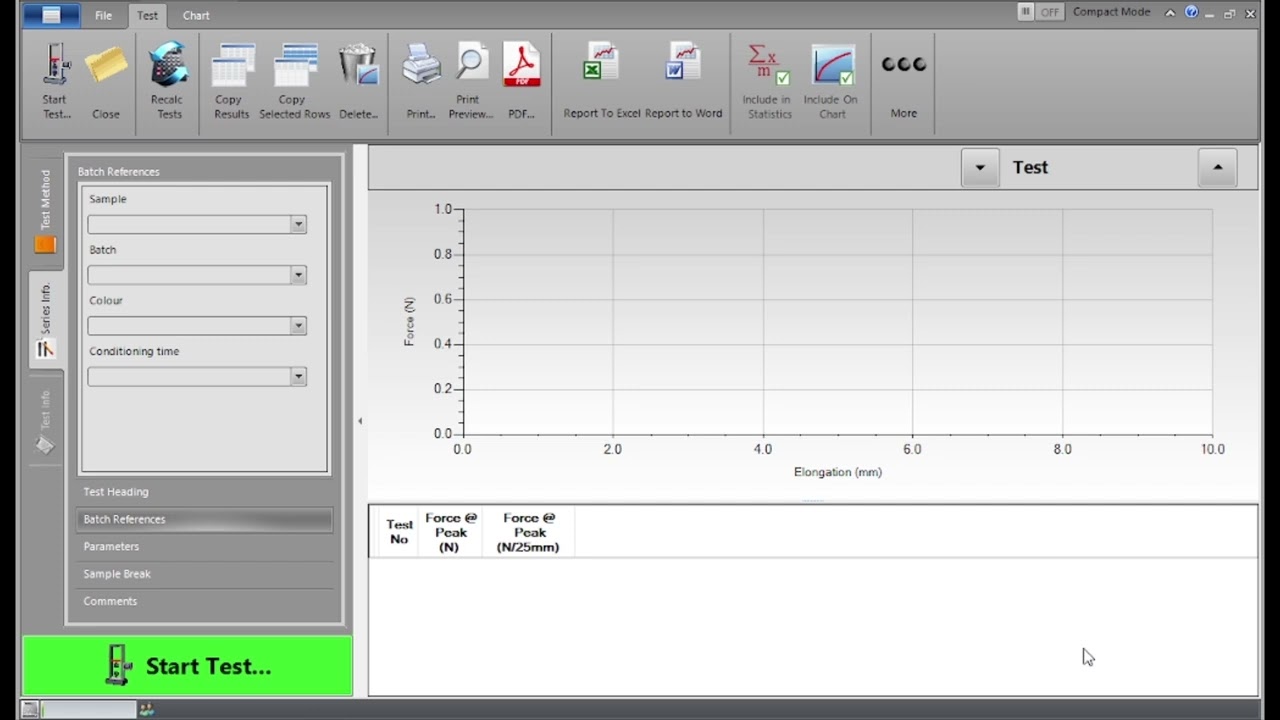

4:35 Adhesion Testing
Bond strength analysis for adhesive applications

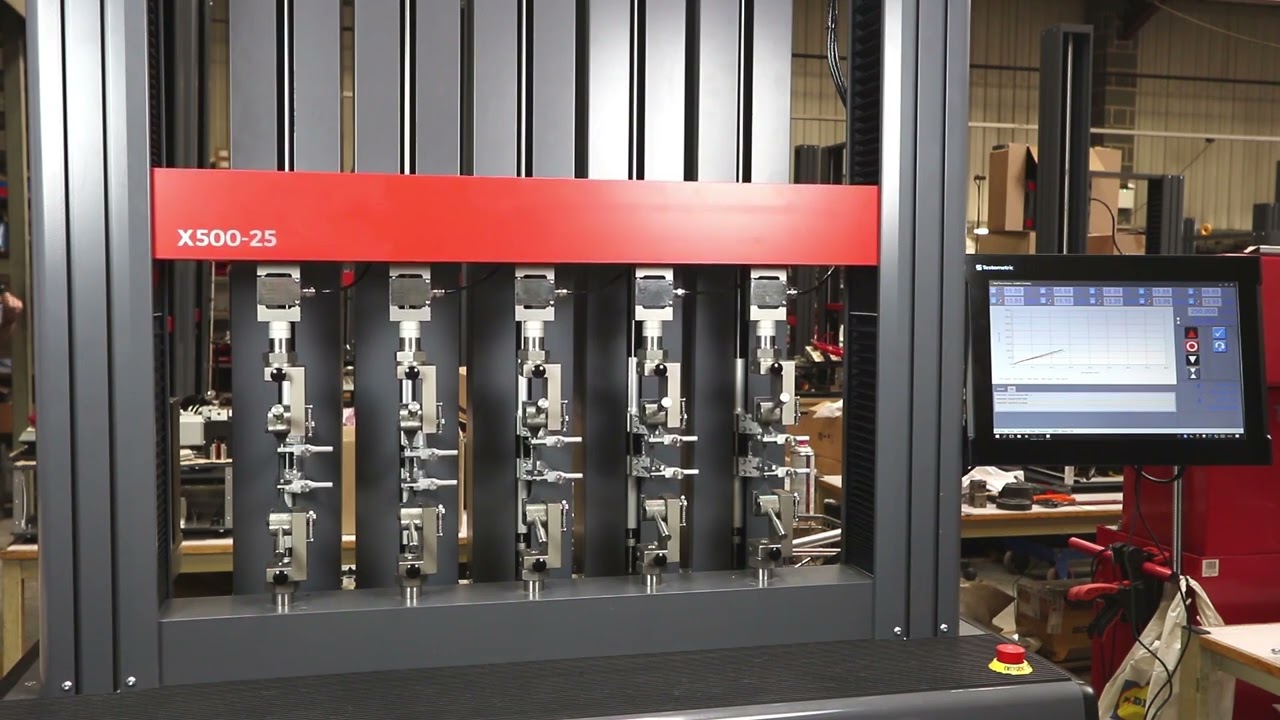

6:15 Multi Station Testing
High throughput testing with multiple stations

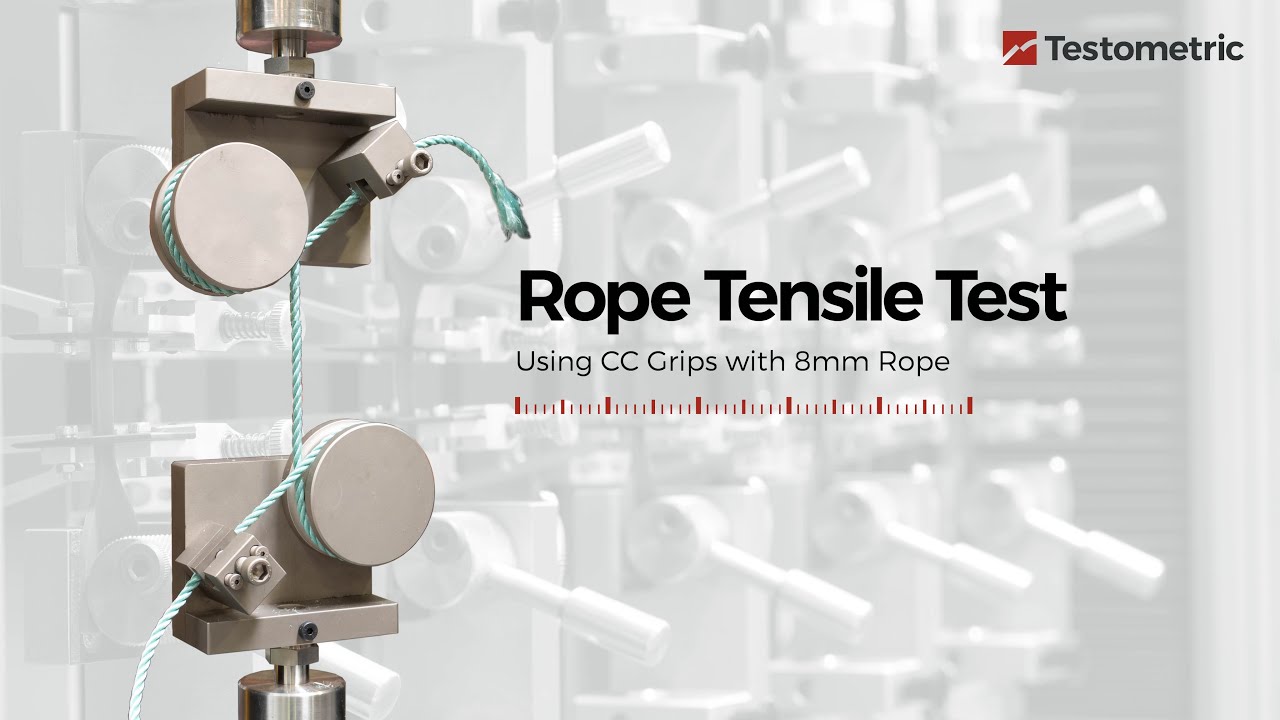

3:50 Rope & Cord Testing
Tensile strength testing of ropes and cords
The Cost of Inadequate Testing
Why leading aerospace, automotive, and industrial labs specify Testometric for mission-critical applications
A 1% error in tensile test results for aerospace composites can invalidate entire batch certifications. ASTM E4 Class 0.5 accuracy (±0.5% of reading) is the minimum for structural components—anything less risks regulatory rejection.
Medical device manufacturers lose ₹80 lakhs-₹2 crores annually due to failed FDA audits from inadequate tensile testing. Suture and catheter failures traced to ±2% test equipment accuracy—Testometric's ±0.5% prevents these costly rejections.
Automotive seat belt webbing requires 24.5kN minimum breaking strength. A UTM with insufficient rigidity can show 26kN when actual strength is 23kN—resulting in recalls costing ₹50-100 crores. Testometric's dual-column design eliminates frame deflection.
Real Results from Real Customers
See how leading organizations achieved measurable improvements with Testometric
Composite Testing Lab
Major aerospace supplier needed to increase composite testing throughput while maintaining NADCAP certification requirements.
Catheter Manufacturer
FDA-regulated manufacturer required 21 CFR Part 11 compliant testing with full electronic records and audit trails.
Geosynthetics Testing Laboratory
Civil engineering lab required high-capacity testing for geogrid and geotextile materials with precise elongation measurement and automated data logging.
"Test equipment accuracy directly impacts production certification. When international auditors and OEMs review your data, precision testing systems eliminate questions and delays."
Technical Questions
How does the XFS 300kN compare to Instron 5980 series?
Both systems meet ISO 7500-1 Class 0.5 standards. The XFS 300kN uses AC servo drive technology and offers comparable accuracy at 0.5%. Key difference is UK manufacturing heritage since 1970 versus US production. Indian manufacturers typically report lower service costs with UK systems due to established regional support infrastructure.
What distinguishes Testometric from Zwick Roell testing machines?
Testometric and Zwick Roell both manufacture in Europe with similar accuracy specifications. The XFS series uses AC servo drives; Zwick systems vary by model. Both meet international calibration standards. Decision typically depends on existing lab infrastructure and regional service partnerships.
Is the XFS 300kN suitable for industrial materials testing?
Yes. ISO 7500-1 Class 0.5 certification meets industrial testing requirements. Used by manufacturers for construction materials, composites, and metal components validation. International standards accept data from properly calibrated ISO-certified systems regardless of manufacturer.
What is the typical calibration cycle for 300kN systems?
Annual calibration per ISO 7500-1 standards. Some manufacturers require six-month intervals for critical applications. Calibration duration is 2-3 days including documentation. Regional accredited calibration labs service Testometric equipment across India.
