X350 Series
Medium-Duty Versatility
Twin-column benchtop universal testing machine with 5-20kN capacity. Engineered for plastics, composites, cables, and timber testing with exceptional frame rigidity and precision.

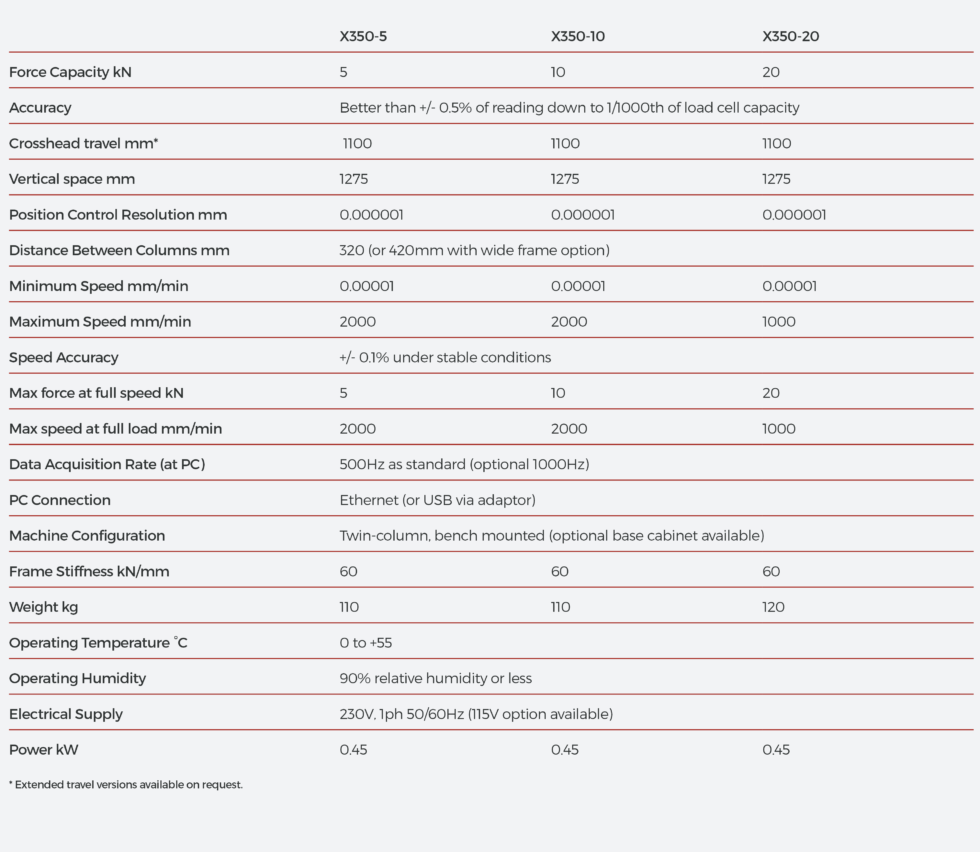

X350 Series Specifications
Key technical specifications for the Testometric X350 Series benchtop universal testing machines.
Engineered for Medium-Duty Excellence
The X350 Series delivers twin-column stability and superior frame rigidity for demanding applications in plastics, composites, and industrial materials testing.
Twin-Column Frame
Dual column design provides 60 kN/mm frame stiffness for superior rigidity, minimizing deflection during high-force testing applications.
Ultra-High Resolution
0.000001mm position resolution (6 decimal places) enables detection of micro-scale displacements for precision strain measurements.
Wide Frame Option
Standard 320mm column spacing with optional 420mm wide frame for testing larger specimens like composite panels and timber sections.
High-Speed Testing
Up to 2000 mm/min crosshead speed for rapid cycling and high-strain-rate testing, with full force available at 2000 mm/min on 5kN and 10kN models.
Ethernet Connectivity
Direct Ethernet connection for network integration and remote operation, with USB adapter available for standalone PC connection.
1000 Hz Data Rate
Optional 1000 Hz data acquisition captures rapid load changes and material events for detailed analysis of brittle fracture and impact behavior.
Full Specifications
Available in three capacity variants: X350-5 (5kN), X350-10 (10kN), and X350-20 (20kN) to match your testing requirements.
| Specification | X350-5 | X350-10 | X350-20 | What This Means |
|---|---|---|---|---|
| Force Capacity | 5 kN | 10 kN | 20 kN | Test plastics, composites, cables up to ~2 tonnes |
| Load Measurement Accuracy | Better than ±0.5% of reading down to 1/1000th of load cell capacity | Meets ISO 7500-1 Class 0.5 requirements | ||
| Crosshead Travel | 1100 mm* | Extended travel versions available on request | ||
| Vertical Test Space | 1275 mm | Room for environmental chambers and extensometers | ||
| Position Resolution | 0.000001 mm | Nanometer-level precision for strain measurement | ||
| Distance Between Columns | 320 mm (420mm wide frame option) | Wide frame for composite panels and timber | ||
| Minimum Speed | 0.00001 mm/min | Ultra-slow for creep and stress relaxation tests | ||
| Maximum Speed | 2000 mm/min | 2000 mm/min | 1000 mm/min | High-speed for rapid cycle and peel testing |
| Speed Accuracy | ±0.1% under stable conditions | Consistent strain rates for repeatability | ||
| Max Force at Full Speed | 5 kN | 10 kN | 20 kN | Full capacity available at maximum speed |
| Max Speed at Full Load | 2000 mm/min | 2000 mm/min | 1000 mm/min | No speed reduction under full load |
| Data Acquisition Rate | 500 Hz (optional 1000 Hz) | Up to 1000 samples/sec for fast events | ||
| PC Connection | Ethernet (or USB via adaptor) | Network-ready for LIMS integration | ||
| Machine Configuration | Twin-column, bench mounted (optional base cabinet) | Floor cabinet option for ergonomic height | ||
| Frame Stiffness | 60 kN/mm | High rigidity minimizes crosshead deflection | ||
| Weight | 110 kg | 110 kg | 120 kg | Requires reinforced bench or cabinet |
| Operating Temperature | 0°C to +55°C | Works in tropical and air-conditioned labs | ||
| Operating Humidity | 90% relative humidity or less | Suitable for Indian monsoon conditions | ||
| Electrical Supply | 230V, 1ph 50/60Hz (115V option available) | Standard Indian power, single-phase | ||
| Power Consumption | 0.45 kW | Low power, standard 6A socket sufficient | ||
* Extended travel versions available on request
Ready for Light-Duty Precision Testing?
Get expert consultation and a tailored quote for your testing applications.
Real-World Testing Solutions
The X350 Series excels in testing medium-strength materials including plastics, composites, cables, and timber with traceable accuracy to international standards.
Plastics & Polymers
Tensile, flexural, and compression testing of injection-molded parts, extruded profiles, and engineering plastics for automotive and consumer goods industries.
Composite Materials
CFRP, GFRP, and laminate testing including interlaminar shear, short beam shear, and open-hole tension for aerospace and automotive composites.
Electrical Cables
Conductor pull-out, insulation tensile, and overall cable strength testing for power cables, communication cables, and automotive wiring harnesses.
Timber & Wood Products
Bending strength, compression parallel to grain, and wood joint testing for structural timber, plywood, and wood-based panels.
Rubber Components
Tensile, compression set, and tear testing of rubber compounds, seals, gaskets, and vibration dampers for industrial and automotive applications.
Fasteners & Hardware
Bolt tensile testing, thread stripping, and fastener proof load verification for construction hardware, automotive fasteners, and industrial fixings.
Choose Your Capacity
Select the X350 model that matches your testing requirements. All models share the same precision and build quality.
X350-5
5 kN capacity for plastics, polymers, and light composites. Max speed 2000 mm/min.
View DetailsX350-10
10 kN capacity for composites, cables, and medium-strength materials. Max speed 2000 mm/min.
View DetailsX350-20
20 kN capacity for timber, fasteners, and structural components. Max speed 1000 mm/min.
View DetailsNeed higher capacity? Explore other Testometric series:
The X350-10 handles everything from polymer testing to cable pull-out with ±0.5% accuracy maintained across the full range. We've reduced test setup time by 40% with automatic load cell recognition, and the twin-column design gives us confidence when testing stiffer composite materials.
