Featuring Systech Illinois line of analyzers
ASTM D3985, F3299-18 & F1249 Compliant
Fully Supported in India by FITCO: Spare parts | After Sales Service | Warranty
Advanced Technical Capabilities
0.002-1000 g/m²/day
WVTR Range
0.05-432,000 cc/m²/day
OTR Range
±0.5% Accuracy
High Precision
10-40°C / 0-100% RH
Environmental Control
P₂O₅ Coulometric
Absolute Measurement
Films & Packages
Wide Sample Compatibility
Globally Recognized, Locally Trusted
We proudly showcase our valued Indian customers alongside the distinguished global customers of our world-class suppliers.
Ready to join our distinguished list of clients? Discover how FITCO can enhance your testing and quality assurance processes.
Contact Us

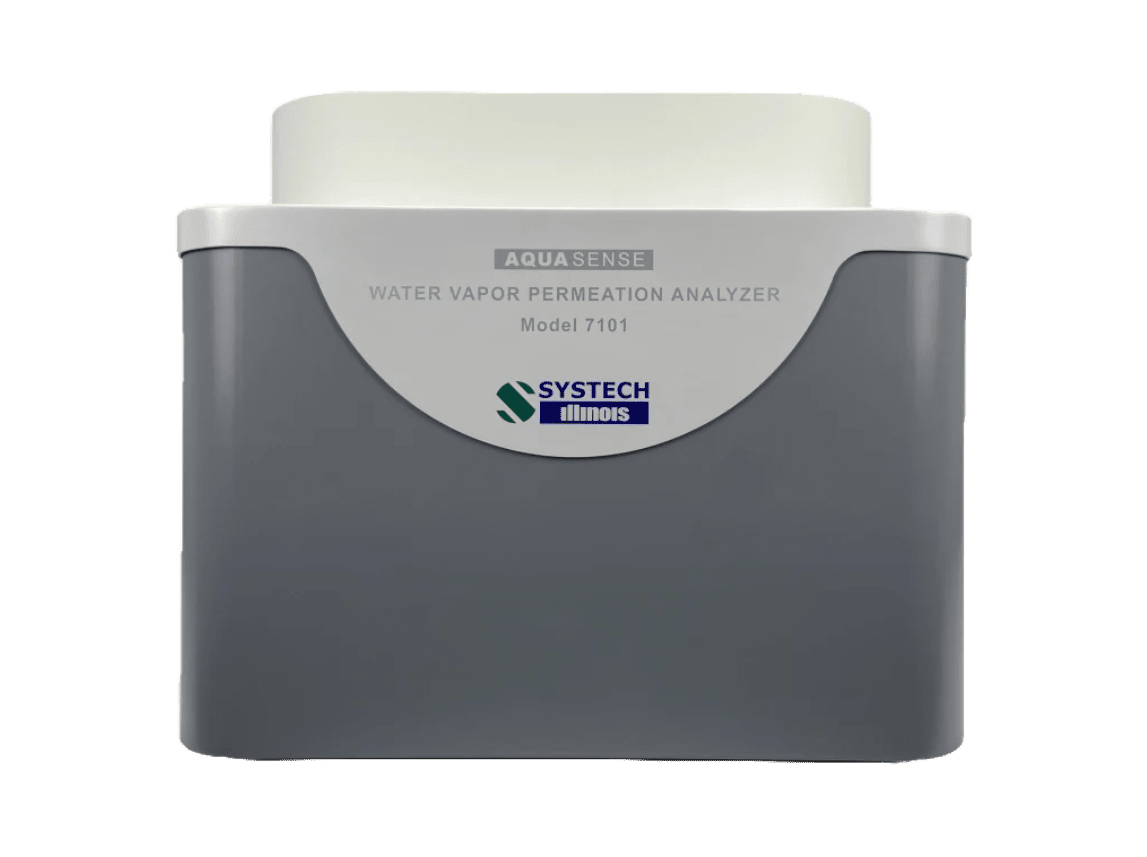

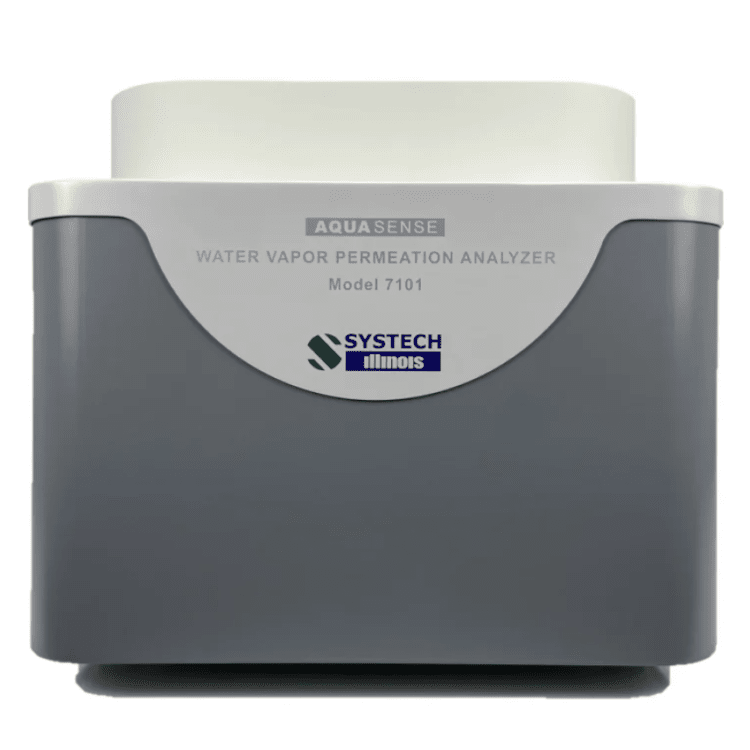

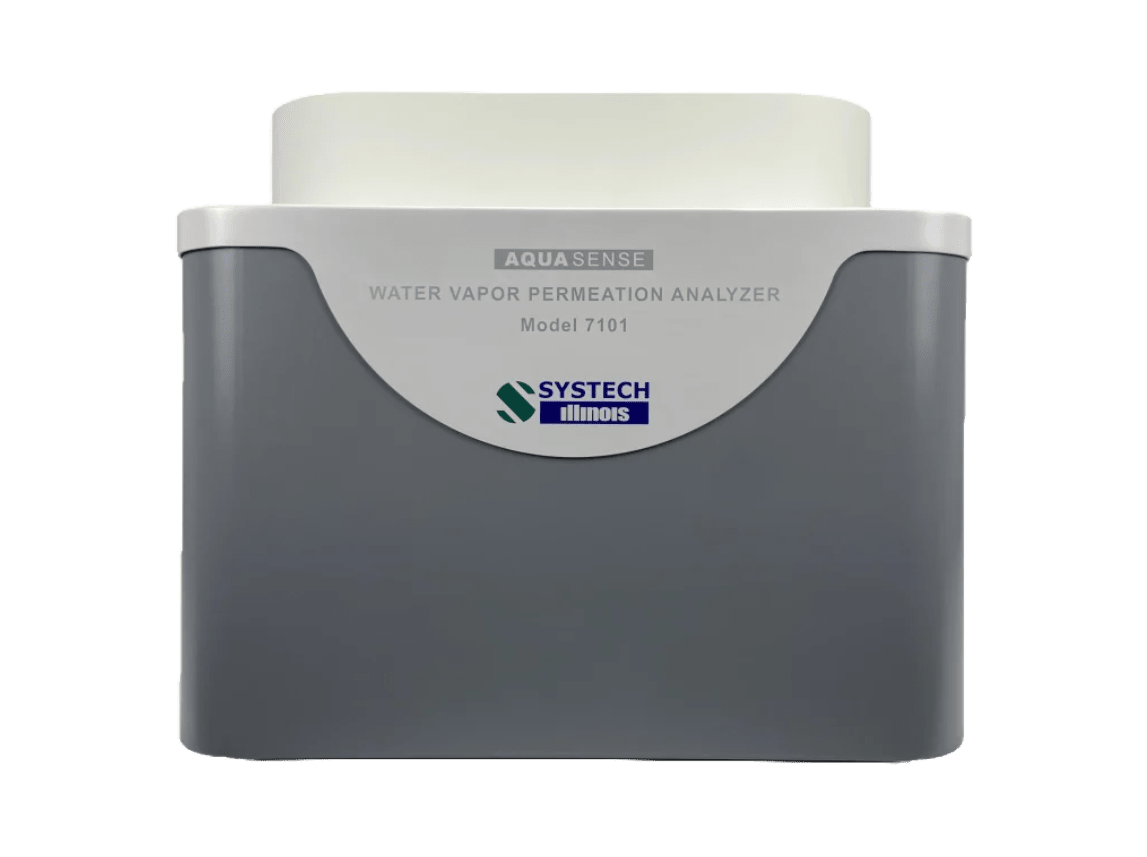

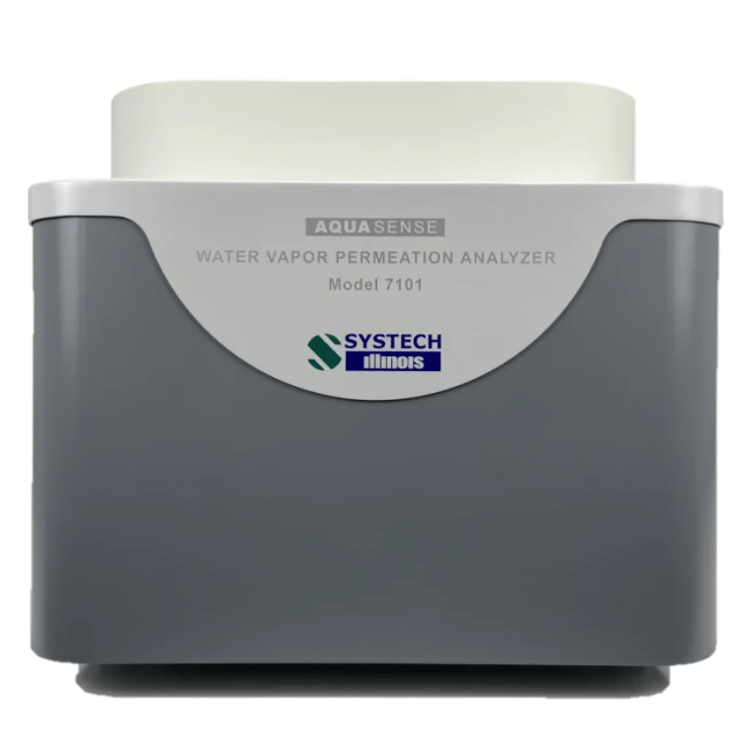

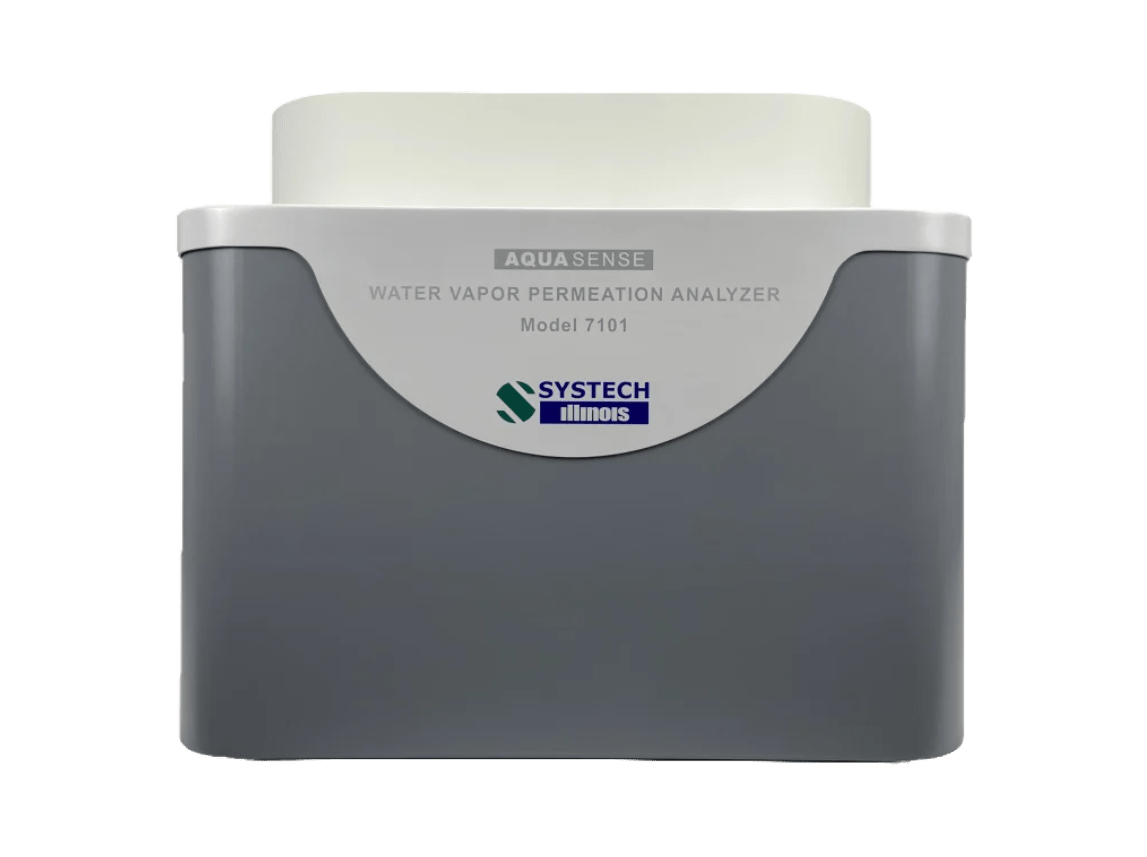

Systech AquaSense 7101 Water Vapor Permeation
0.002-1000 g/m²/day
Measurement Range
±0.5%
Accuracy
P₂O₅ Coulometric
Sensor Technology
10-40°C
Temperature Range
20-90/100% RH
Controlled RH
ASTM F1249
Compliant
ASTM F3299-18
Compliant
ISO 151106-3
Compliant
No Calibration Needed
Absolute Measurement
50 cm²
Standard Test Area
Pure Nitrogen
Gas Requirement
Bottles, Barrier Films, Pouches, Laminates & more
Sample Types
High-Precision Water Vapor Transmission Rate Testing
- • Advanced Sensor Technology: Proprietary phosphorus pentoxide (P₂O₅) moisture sensor with dual platinum winding formed around a quartz tube, providing absolute measurement without calibration.
- • Comprehensive Range: Delivers precise measurements from 0.002-1000 g/m²/day, ideal for both high-barrier pharmaceutical packaging and more permeable food packaging materials.
- • Environmental Control: Compliant with ASTM F1249 and ASTM F3299-18, with exceptional temperature (10-40°C) and relative humidity (20-90/100% RH) control for precise testing conditions.
- • Simplified Operation: The Q-Seal™ gas-free cell closure system simplifies testing—just load the film and press a button. Suitable for films, packages, bottles, and barrier materials.

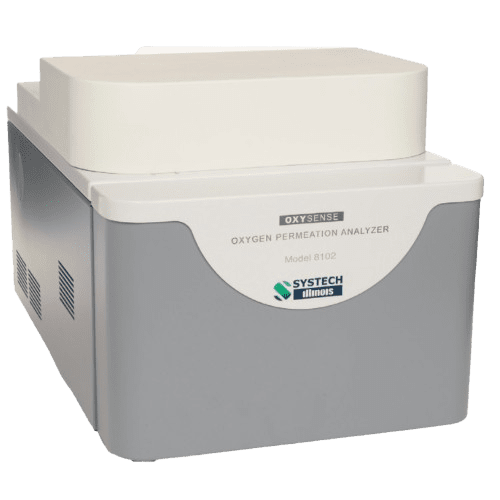

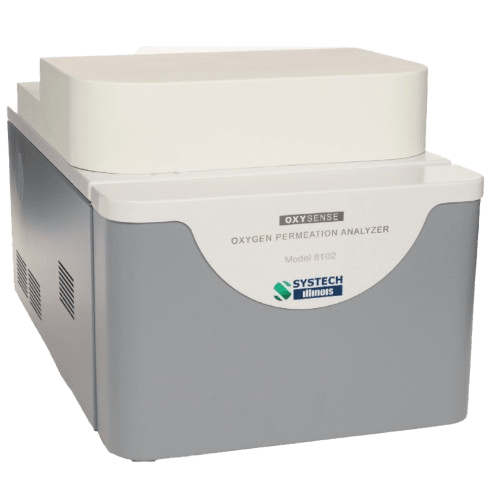

Systech 8101e OxySense® Oxygen Transmission Rate Analyzer
0.05-432,000 cc/m²/day
Measurement Range
0.0001 cc/m²/day
Resolution
0.015 or 1%
Repeatability
eMetric™ Coulometric
Sensor Technology
10-40°C ±0.1°C
Temperature Control
Controlled RH
Humidity System
ASTM D3985
Primary Standard
Auto-Stop™
Testing Optimization
Pure O₂ & Pure N₂
Gas Requirement
Certified Gas
Validation Method
Films & Packages
Sample Types
Wet to Dry Testing
Quick Conversion
High-Performance Oxygen Transmission Rate Testing
- • Exceptional Precision: Advanced eMetric™ high-sensitivity coulometric sensor delivers measurements across an industry-leading range from 0.05 to 432,000 cc/(m²·day).
- • Versatile Testing: Suitable for barrier films, PET bottles, containers, bags, and flexible pouches with resolution down to 0.0001 cc/(m²·day) and repeatability of 0.015 or 1%.
- • Global Compliance: Meets international standards including ASTM D3985, ASTM F1307, ASTM F1927, ISO 15105-2, DIN 533803-3, and JIS 7126.
- • Optimized Efficiency: Patented Auto-Stop™ technology automatically determines equilibrium, reducing test time. Validation with third-party certified gas ensures accuracy.

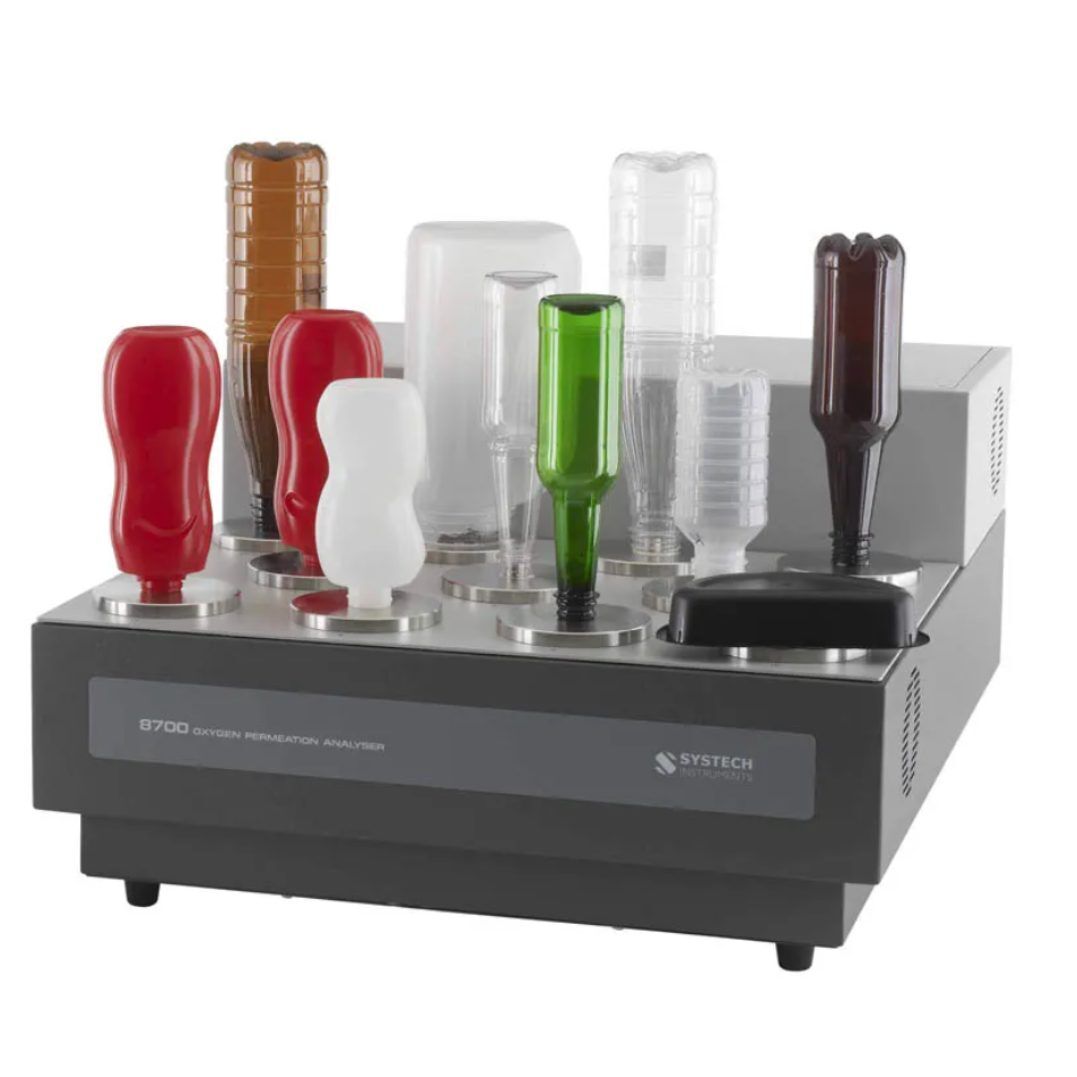

Systech 8700 and 8701 OxySense® Oxygen Permeability Analyzer
0.0004-2000 cc/pkg/day
Measurement Range
0.0001 cc/pkg/day
Resolution
0.0001 or 2%
Repeatability
Ambient
Temperature Range
11 Samples
Simultaneous Testing
Films or NIST Gas
Calibration
Up to 66 Cells
Max Expansion
3+ Hours
Fast Testing Time
Coulometric
Sensor Technology
100-240 VAC
Power Rating
760 x 590 x 350 mm
Dimensions
Industrial N₂
Gas Requirement
Package Permeation Testing Excellence
- • Unmatched Efficiency: Test 11 samples simultaneously with individual start/stop/delay capabilities. Ultra-fast testing with results in as little as three hours.
- • Versatile Package Testing: Optional adapters available for the 8701 to test a wide variety of package types. Easy sample connection and rapid measurements for maximum efficiency.
- • Reliable Performance: Proven coulometric sensors provide reliable, repeatable, and accurate measurements. System is designed to eliminate errors and reduce operator training.
- • Low Operating Cost: Simple Windows-based software with Quickstart stored testing configurations. No special gases required—industrial grade nitrogen is all you need.
