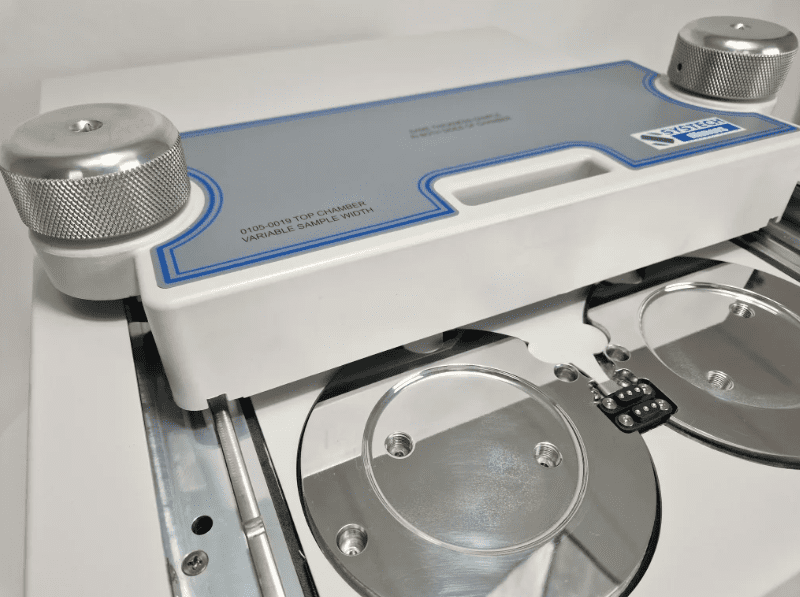

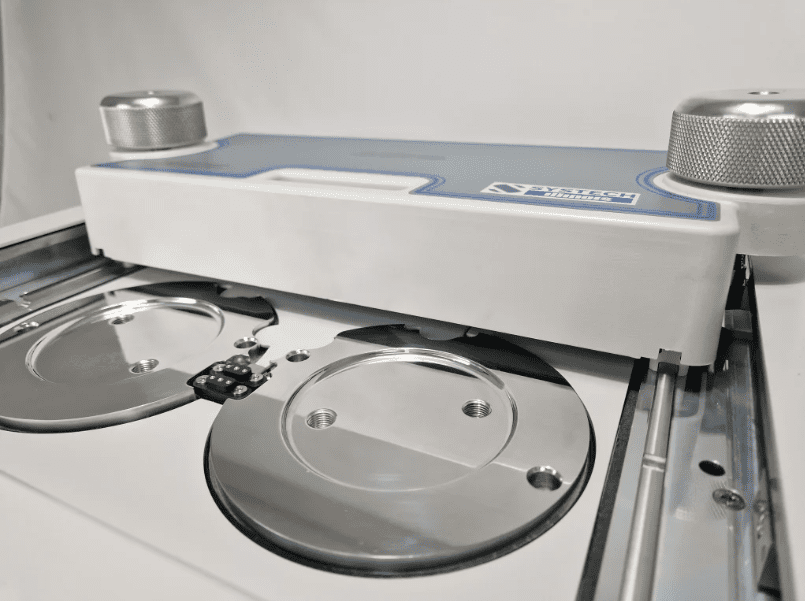

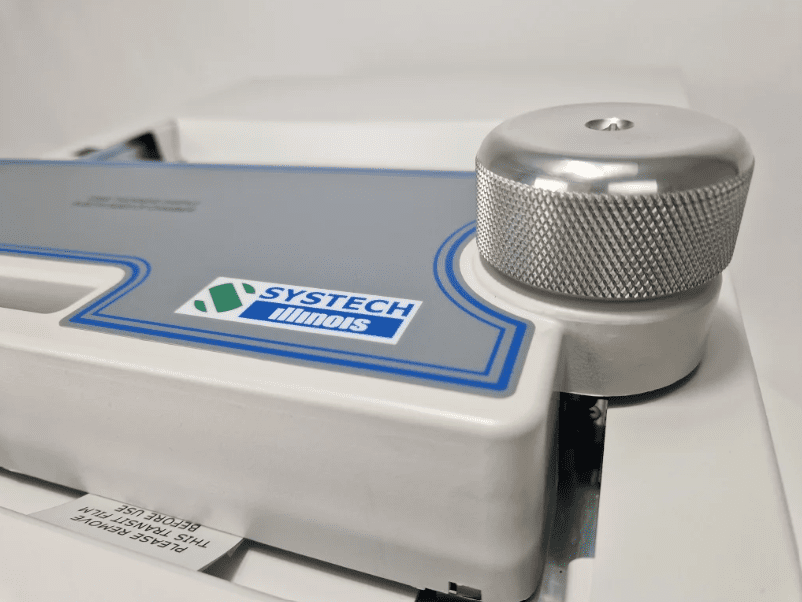

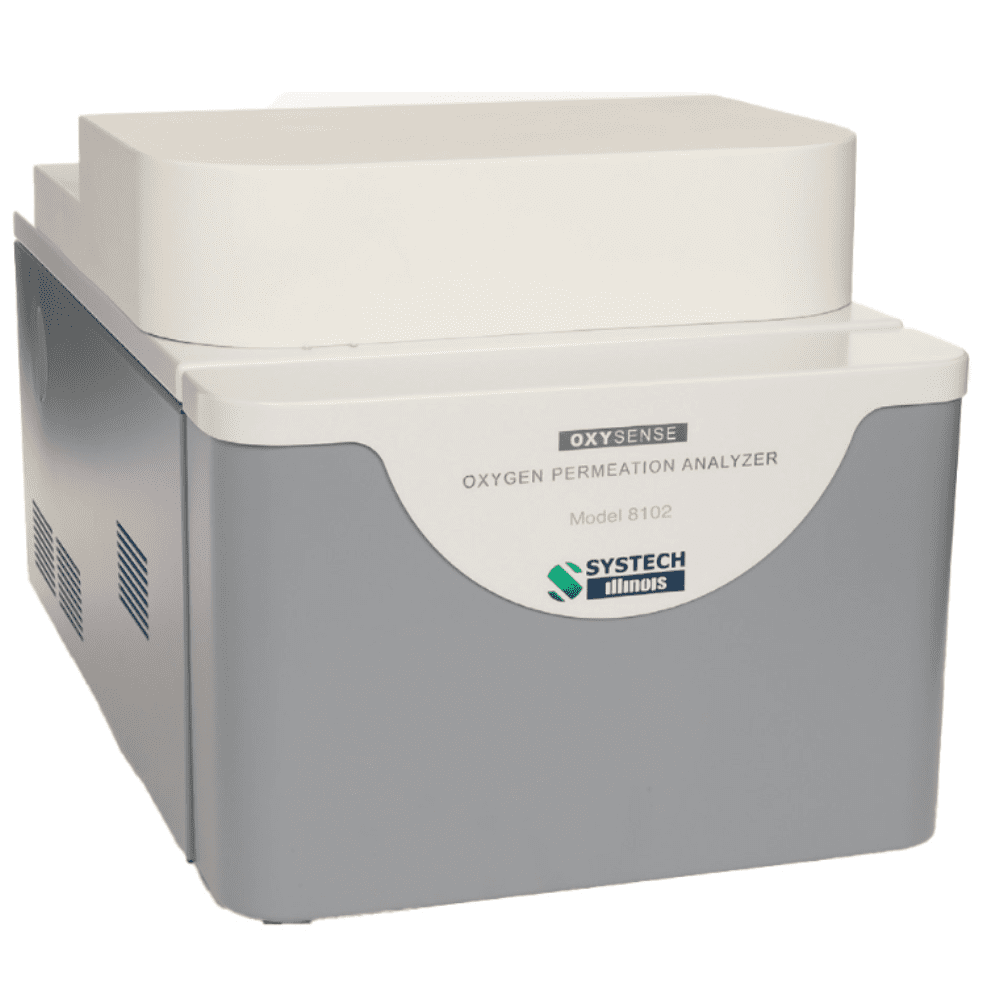

Oxysense 8102 – Oxygen Transmission Rate Analyzer

This product measures oxygen transmission rates and provides a low-cost solution for those who are testing at dry conditions with throughput, quality control and R&D demands.

SKU: L80-6000-1 Category:

Description

Our 8102 Oxysense oxygen transmission rate measurement incorporates the latest in coulometric sensor technology with high sensitivity and the wide test range. The instrument is simple to operate, designed to lower testing costs, and increase productivity.

Dry testing
This instrument is ideal for users that want to test oxygen transmission rates of barrier films, PET bottles, Containers, Canisters, Bags and Flexible pouches in ambient lab conditions or at specific RH conditions using environmental chamber.

Advanced and long-life sensor technology
Our high sensitivity, wide range e-Metric coulometric sensor technology has a long service life – lasts twice as long as the competition.

Easy operation
Intuitive Windows based software that can be run on any commercially available Desktop, Laptop or tablet computer.

Additional information

Gas

Oxygen

Application

Permeation

Controlled RH Testing Ranges

Films – Ambient or 100% RH controlled with sponges, Packages – Ambient or controlled by chamber

Test temperature range

10°C to 40°C ± 0.1°C

  • Test films at dry or 100% RH conditions with sponges
  • Proprietary Long Life “E-metric”, coulometric sensor technology, last twice as long as the competition
  • ASTM D3985 and ASTM F1307 compliant
  • Computer controlled temperature settings
  • Does not require expensive nitrogen/hydrogen mixed gas
  • Tests packages at ambient lab conditions or precise temperature and RH using environmental chamber
  • Long life sensor – lasts twice as long as competition
  • Large test range of 0.05 cc/m2day – over 400,000 cc/m2day
  • Anti-surge protection against exposing the sensor to large amounts of oxygen & extends sensor life
  • Advanced software features
