8700 & 8701 OxySense® Oxygen Permeability Analyser

Oxygen Permeation Analyzer 8700-8701, The ultimate solution for fast and reliable Oxygen permeability testing of multiple bottles & Packages.

Applications: Permeation Testing

SKU: MDL-008700 & MDL-008701 Category:

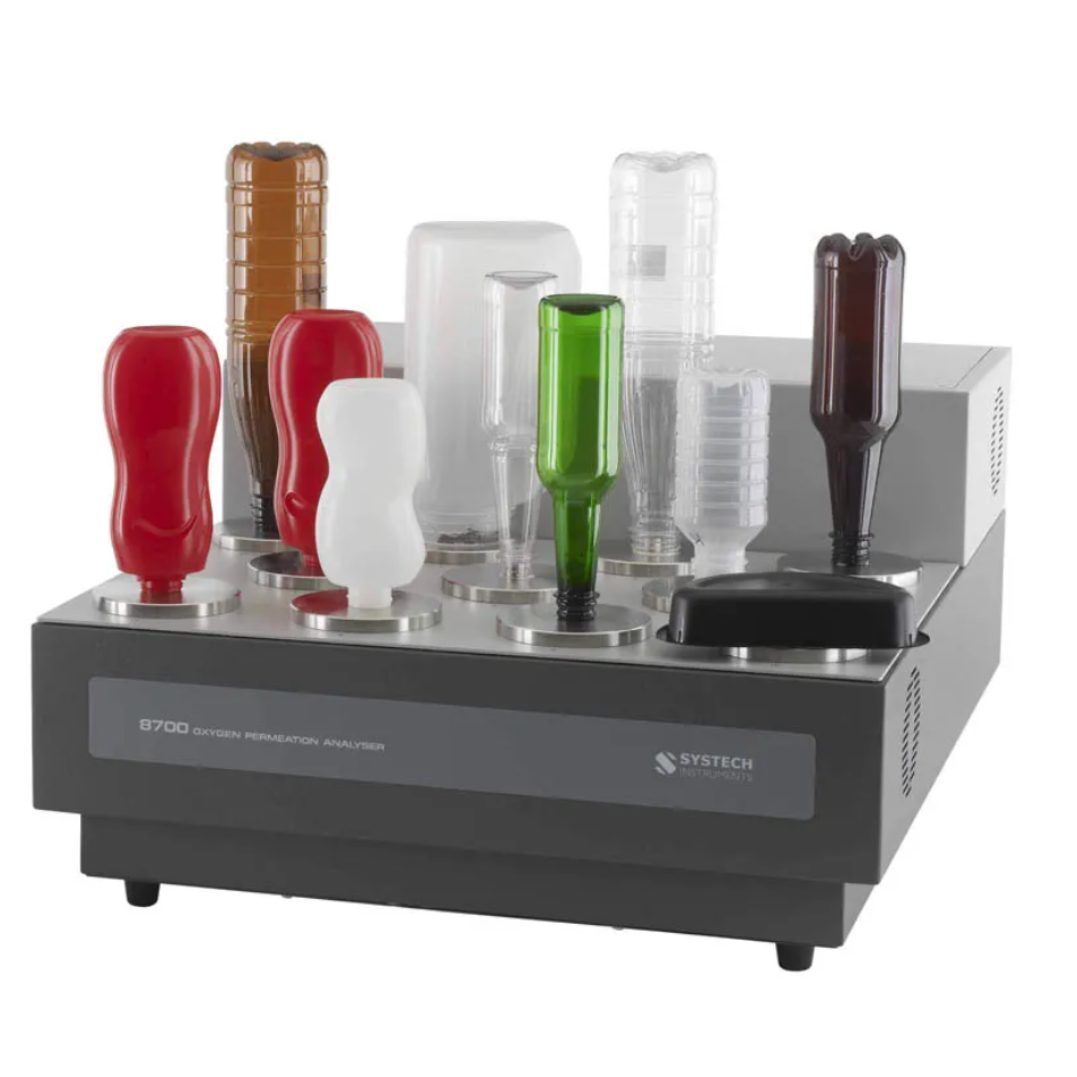

8700 oxygen permeation analyzer

The 8700 with fixed platens is ideal for rapid permeation testing of multiple bottles in PET bottle manufacturing and as an invaluable R&D resource in laboratories for development work to test and validate new packages. In addition, this oxygen permeability analyzer can be used for Quality Control, to confirm the performance and standard of the packaging. With ultra fast testing using Systech Illinois’ Turbopurge™ technology this oxygen permeability tester can efficiently test up to 11 samples (expandable to 66) simultaneously in as little as three hours.

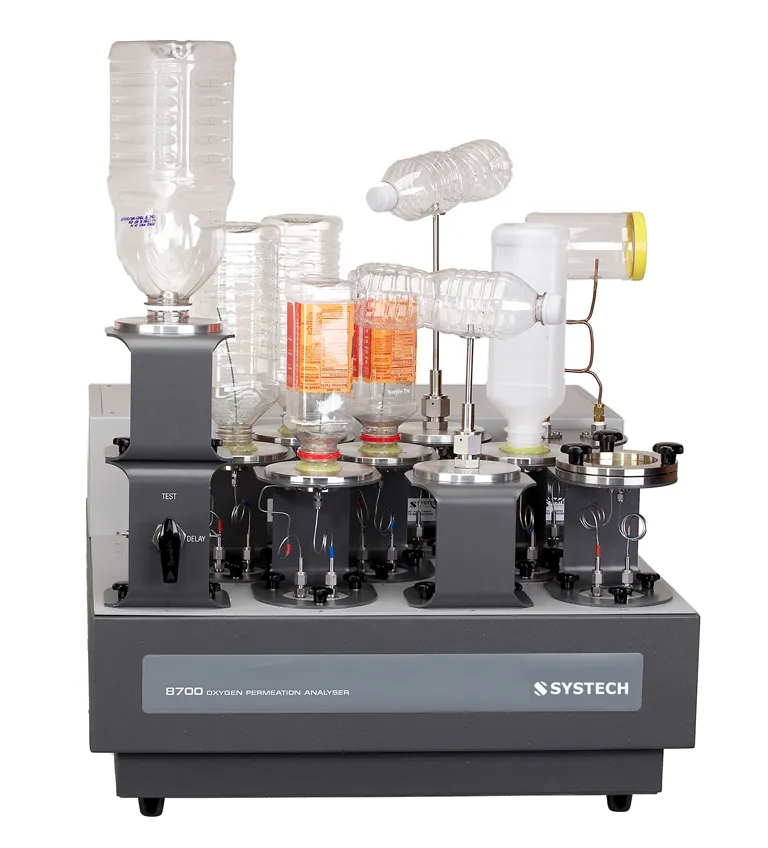

8701 oxygen permeation analyzer
Based on our proven oxygen transmission rate (OTR) instrumentation range, the versatility of the 8701 oxygen permeation analyzer allows flexible testing on multiple bottles and packages.

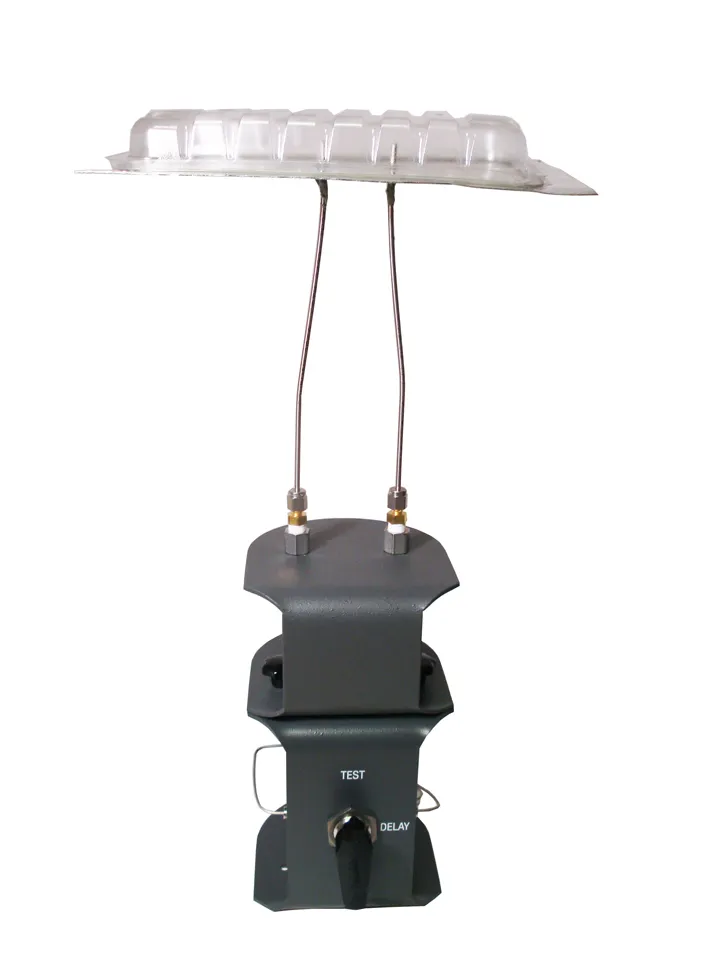

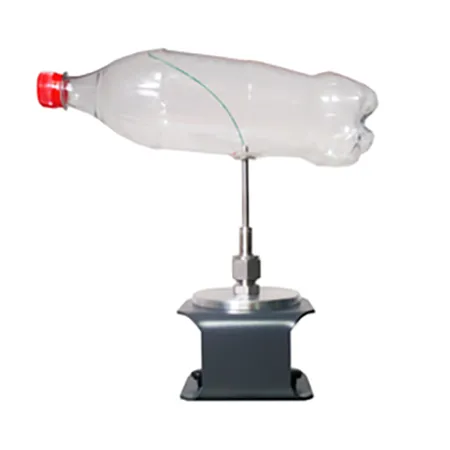

The 8701 offers a range of optional adapters to provide versatile package testing of films, containers, canisters, pouches, bags, closures and more. Adapters can also be specially designed for your application.

Additional information





Measurement range

Packages 0.00004 to 2000 cc/pack/day,
Films 0.04 – 100,000 cc/m2/day

Test temperature range


Controlled RH Testing Ranges

Dry and unknown wet RH (assumed saturated or 100% RH)


NIST referenced films and certified gases

Temperature control



760 x 590 x 350 mm


65 kg

  • Measure 11 samples simultaneously – individually started, stopped or delayed.
  • Optional adapters are available for the 8701 instrument, for the testing of a wide variety of packages.
  • These analyzers are set up to eliminate errors and reduce operator training.
  • Simple Windows based software control – easy to set up with Quickstart stored testing configuration settings and clear concise results presentation.
  • Easy sample connection and rapid measurements make the 8700 and 8701 the most efficient permeation analyzers available.
  • Ultra fast testing – the fastest stabilisation time for permeation measurement. Saving out-of-specification production time. Testing can be done in as little as 3 hours.
  • Confidence in your permeation measurement – the proven coulometric sensor provides you with reliable, repeatable and accurate measurements, time and time again.
  • Low Running Costs, no special gases required. Industrial grade nitrogen is all you need.
