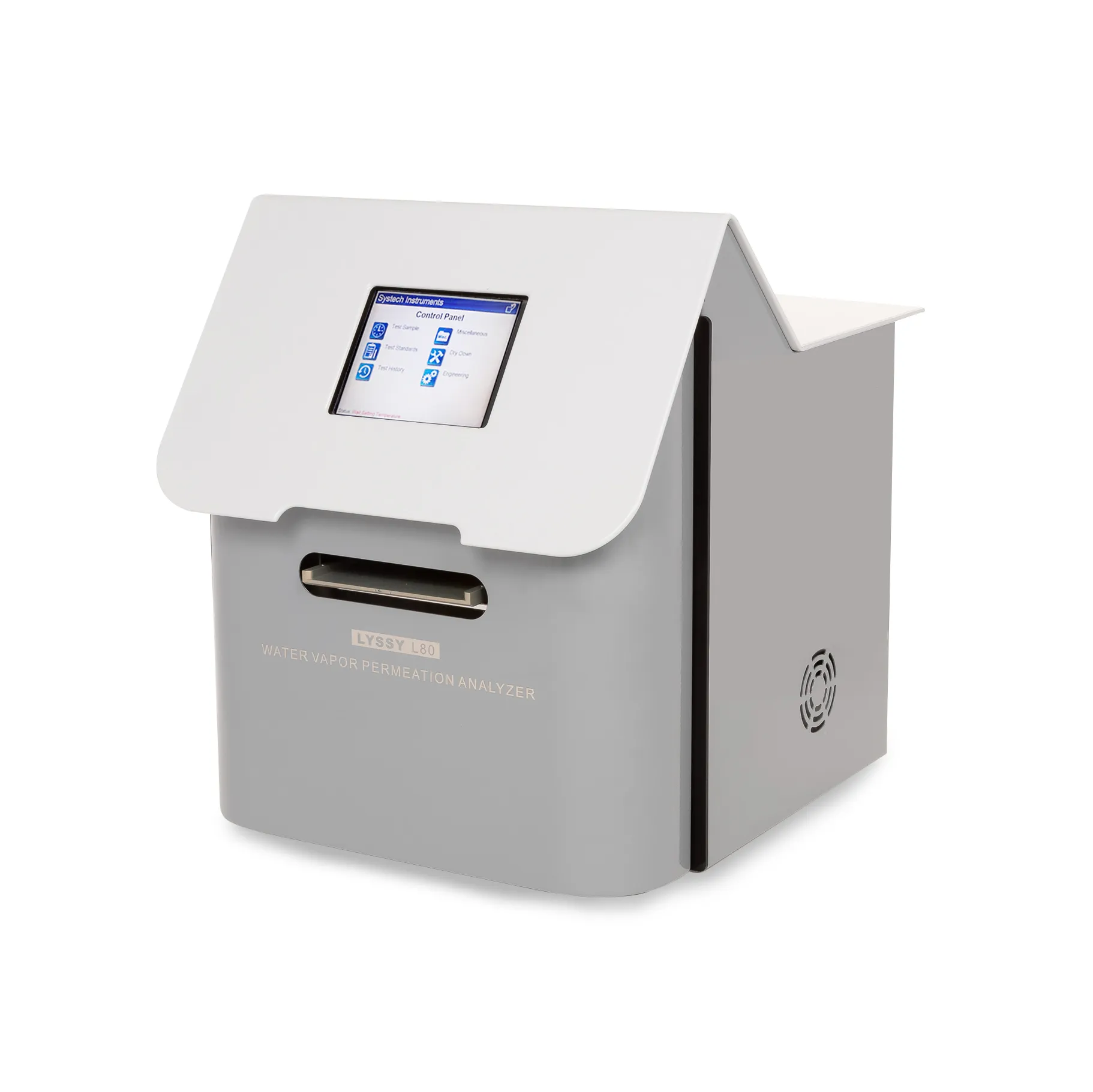

Lyssy L80-6000 Water Vapor Permeation Analyzer

Lyssy L80-6000 Water Vapor Permeation Analyzer New and improved reliable testing instrument for water vapor permeability

Applications: Permeation Testing

Materials: FilmPaper Plastics and Polymers

Standards: ASTM E398-3


SKU: L80-6000 Category:

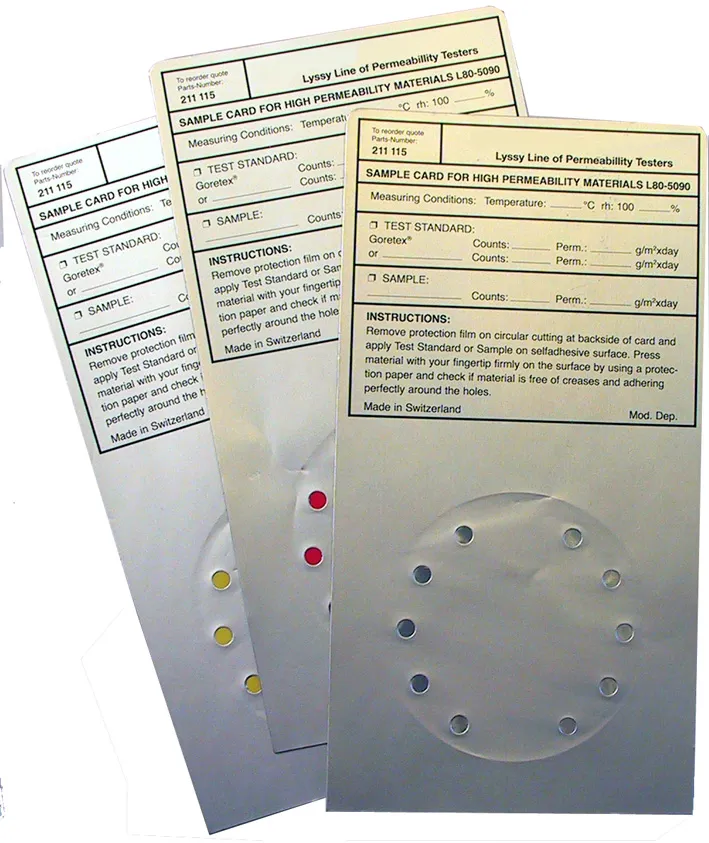

The L80 series of analyzers have been used successfully for decades in many laboratories. The L80-6000 is the latest generation of the proven L80 series, used around the world. Simple to use with a reliable testing principle and low maintenance this instrument is a cost effective solution. The Lyssy L80-6000 can measure high permeability materials using special sample cards. It is extremely quick and the more permeable the sample the shorter the measuring time. In addition to its short testing times and wide measurement range, it offers a high degree of accuracy.

The accuracy and wide measuring range of 0.03 – 10,000 g/m2/day are achieved by using a highly sensitive and reliable humidity sensor which is located directly in the measuring chamber. This test method offers the best reproduction of real-life conditions, since no carrier gas or extractive measuring technique is used.

The humidity sensor is very stable, regardless of the humidity range in which it is operated. As a result, the L80-6000 alternates quickly and easily between low and high permeability measurements. Typically, the change can be done in one hour or less using the ‘Simulated Test standard’ function.

Additional information


Water Vapor



Measurement range

0.03 – 10,000 g/m2/day

Test temperature range

5 to 50°C (41 to 158°F) with built-in temperature control


5%-60% RH

Ambient Humidity

10-90% RH (non-condensing)


400 x 400 x 350 mm


24 kg (approx.)

  • Easy to use operator interface
  • Fast and accurate test results
  • Automatic equilibrium detection
  • Easy set-up of test parameters and sample data
  • Built-in printer allows for easy test documentation
  • Simple to operate due to the high degree of automation
  • Broad testing range covering low and high permeability
  • Automatic temperature control
  • Easy to use test sample holders
  • Low degree of maintenance
