Testometric Special Frames
Advanced UTM Testing Systems for Specialized Applications - Precision Engineering for Modern Laboratories
Multi-Station Testing
Advanced multi-station testers for simultaneous testing with real-time data collection and analysis
Specialized Frame Designs
Long frame, wide frame, horizontal testers designed for specific testing requirements and applications
WinTest Software
Comprehensive WinTest analysis software with advanced calculations and industry-standard test methods
Complete Testometric Special Frames Range

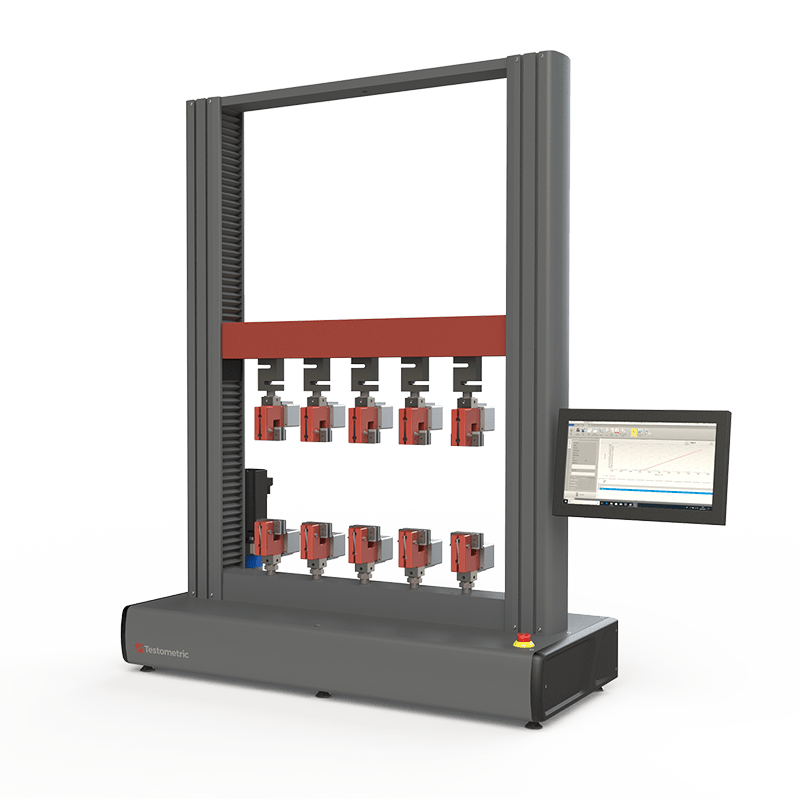

Multi-Station Tester
Twin-column, bench-mounted Universal Testing Machine with full computer control and precision AC servo drive system. The XM500-MS has 5 stations where tests can be conducted simultaneously with real-time data collection up to 100kN capacity.
Read More

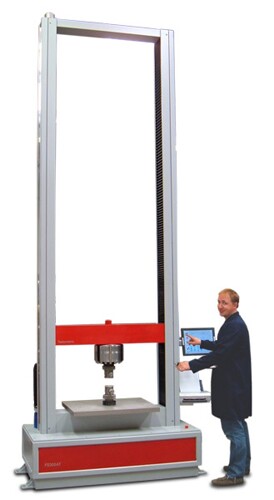

Long Frame Tester
Extended length Universal Testing Machine designed for testing long specimens and materials requiring extended gauge lengths. Features high precision load cells and advanced microprocessor controls for accurate testing of extended samples.
Read More

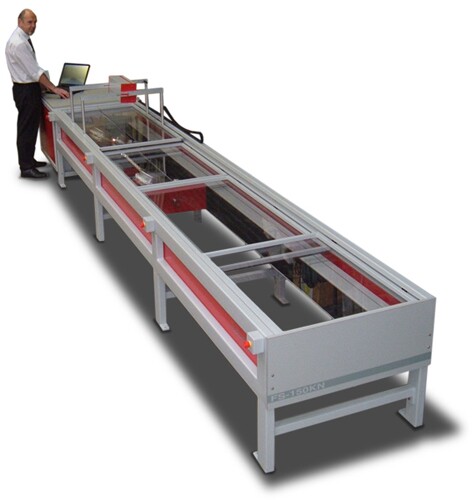

Horizontal Tester
Horizontal Universal Testing Machine designed for testing applications where vertical testing is not practical. Features precision load control and measurement systems with advanced data acquisition capabilities for specialized testing requirements.
Read More
Wide Frame Testing Systems
Wide frame Universal Testing Machines designed for testing large specimens and materials requiring extended width capacity. Features robust construction with high stiffness loading frames and precision control systems for accurate testing of wide materials.
Read More

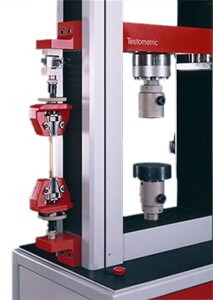

Dual and Triple Test Systems
Advanced dual and triple test systems enabling multiple simultaneous testing configurations. Features synchronized control systems, independent load cells, and comprehensive data acquisition for high-throughput testing applications with enhanced productivity.

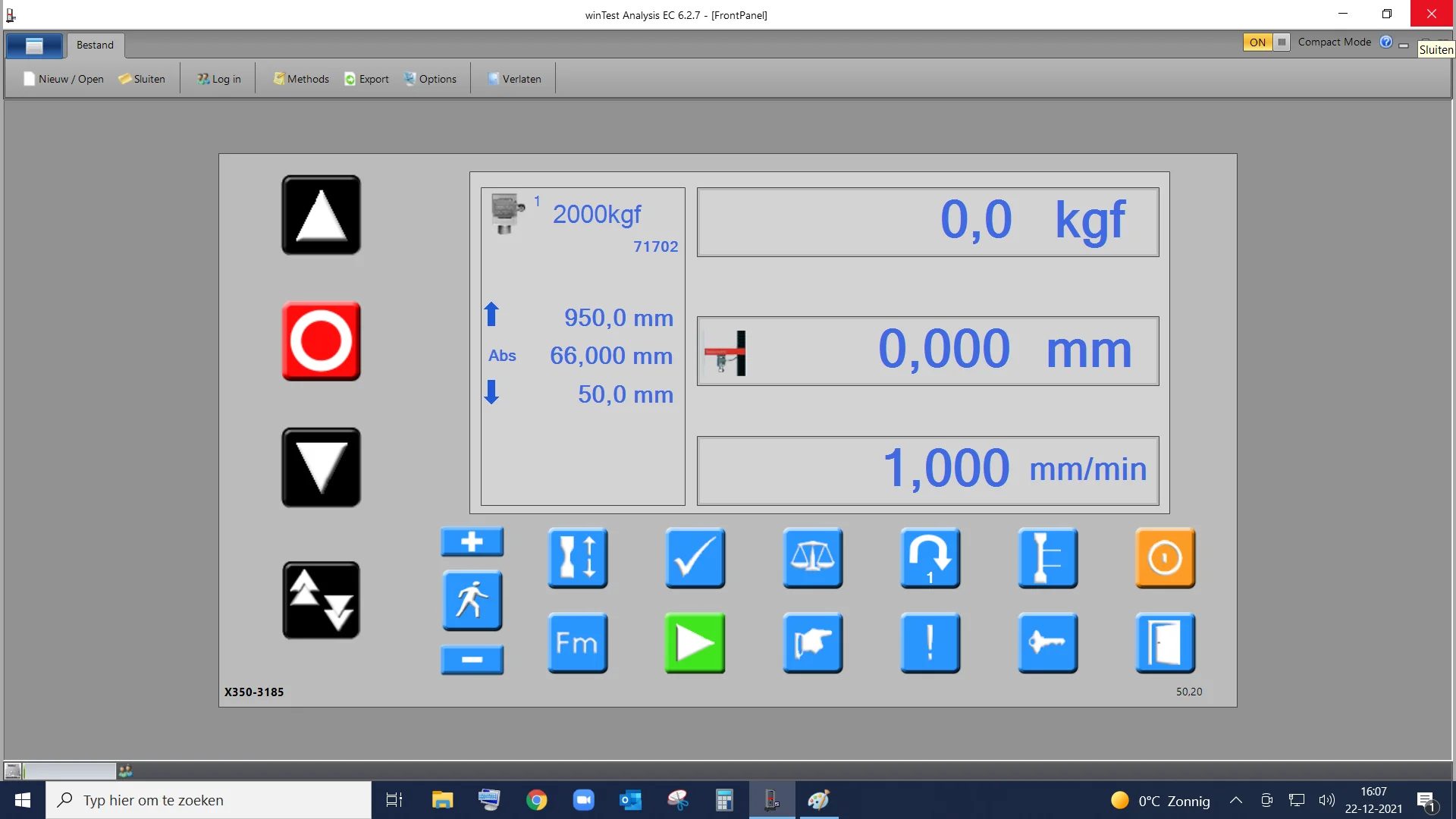

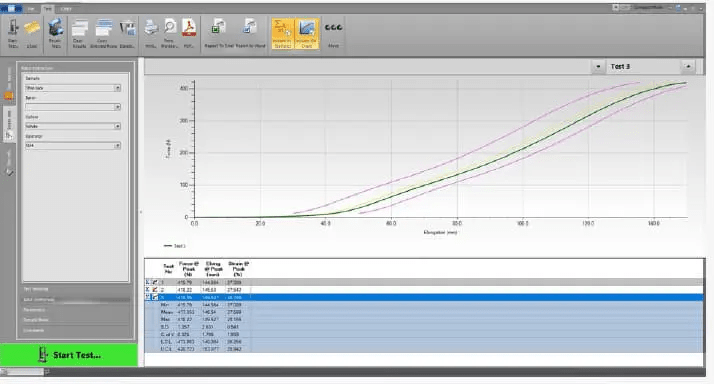

Read MoreWinTest™ Software Suite
Comprehensive universal Windows software covering tensile, compression, peel, shear, tear, cyclic, creep and multi-stage testing with over 100+ calculation parameters
🔬 Advanced Testing
Industry standard test methods with unlimited custom protocols. Automated data storage and easy export to Excel, Word, Access, and SPC systems.
📊 Data Analysis
Real-time graphs, statistical analysis, and professional report generation with comprehensive calculation parameters for detailed material characterization.
🏭 Industry Ready
Pre-configured for aerospace, automotive, textiles, packaging, pharmaceuticals, and more. Full compliance with international testing standards.
Comprehensive Testing Parameters & Calculations
| Average Force | Energy to Yield | Seam Opening Force | Stress @ Peak |
| Average Force / Width | Force @ 1st Collapse | Seamed Strength | Stress @ Proof |
| Average of 5 Highest Peaks | Force @ Elongation | Secant Modulus @ Strain | Stress @ Strain |
| Average Peaks (Selected Region) | Force @ Peak | Secant Modulus @ Stress | Stress @ Yield |
| Bending Strength @ Peak | Force @ Proof | Secant Stiffness | T.E.A. |
| Bending Modulus | Force @ Rupture | Spring Rate Between Deflections | Tangential Modulus @ Strain |
| Bursting Strength | Force @ Time | Spring Rate Between Forces | Tangential Modulus @ Stress |
| Chewiness | Force after Stage | Static Co-eff of Friction | Tenacity |
| Chord Modulus | Fracturability | Strain @ Break | Time to Failure |
| Crush Force (Edge) | Hardness | Strain @ Force (Load Cycle) | Time to Peak |
| Deflection @ 1st Collapse | Initial Modulus | Strain @ Force (Return Cycle) | Transverse Rupture Strength |
| Deflection @ Force (Stage) | LOP | Strain @ Force (Stage) | Unseamed Strength |
| Deflection @ Time | Lowest Force | Strain @ Limit of Proportionality | Ym |
| Density | MOR | Strain @ Rupture | Young's Modulus |
| Dynamic Co-eff of Friction | Percentage Reduction of Area | Strain to LOP | |
| Elongation @ Break | Plastic Strain Ratio r | Strain to MOR | |
| Energy to Break | Poisson's Ratio | Stress @ % Height |
Industry Solutions
Testometric Special Frames serve diverse industries with specialized testing requirements
Aerospace
Advanced composite testing, fatigue analysis, and structural component validation
Automotive
Crash testing, material characterization, and component durability analysis
Construction
Concrete testing, rebar analysis, and structural material validation
Textiles
Fabric strength testing, yarn analysis, and textile product evaluation
Packaging
Package integrity testing, seal strength analysis, and material evaluation
Research & Development
New material development, prototype testing, and advanced research applications
Why Choose Testometric Special Frames?
- Advanced multi-station testing capabilities for increased productivity
- Specialized frame designs for unique testing requirements
- High precision load cells with accuracies better than ±0.5%
- Automatic recognition of load cells and extensometers
- 800% overload capability without damage
- High efficiency pre-loaded self-cleaning ballscrews
- Precision crosshead control via digital AC servo drive
- High-speed data collection systems for up to 4 synchronous channels
- Comprehensive WinTest™ analysis software included
- Extensive range of grips and fixtures available
- Overload, overtravel and impact protection
- Small footprint design for economy of space
Technical Specifications
- Force measurement: Universally calibrated, better than Grade 0.5 EN 7500-1
- Load cell range: 0.4% to 100% minimum with autoranging
- Resolution: 1 part in 500,000 with electronic load cell protection
- Extension measurement: Full frame length to 0.001mm accuracy
- Speed control: 0.001mm/min to maximum with temperature protection
- Frame stiffness: 5kN/mm plus K factor facility built-in
- Safety features: Electronic limit trips and programmable safety stops
- Data acquisition: High-speed systems with real-time processing
Service & Support
Comprehensive Technical Support & Service
Federal India Trading Company provides complete technical support, installation services, calibration, preventative maintenance, and repair services for all Testometric Special Frames. Our certified technicians ensure optimal performance and compliance with international standards.
As the authorized distributor of Testometric equipment in India, we ensure timely delivery, expert installation, comprehensive training, and ongoing support to maximize your testing capabilities and ROI.
