50 kN UTM

MADE TO MEASURE

Fully digital testing system with high precision control and accuracy, includes automated computer control of test methods giving simplicity of operation.

High resolution load cells with accuracies better than +/-0.5% down to 1/1000th of the load cell capacity.

Automatic recognition of load cells and extensometers, with instant calibration check facility.

800% overload capability of load cells without damage.

High efficiency pre-loaded self cleaning ballscrews for fast, quiet testing. Fitted with sealed for life lubricated end bearings.

Crosshead guidance system providing precise alignment and smooth running.



Description

Precision crosshead control via digital AC servo drive and brushless servo motor giving maintenance free operation and 23-Bit positional control.

High speed data collection systems for up to 4 synchronous channels.

6 I/O channels for additional devices such as extensometers, micrometers,
calipers, balances etc.

High stiffness loading frames with solid specialised steel crossheads and rigid extruded support columns with T-slots for accessory mounting.

Overload, overtravel and impact protection.

Telescopic covers giving additional protection for ballscrews against dust
and testing debris. Small footprint design, giving economy of bench and floor space.

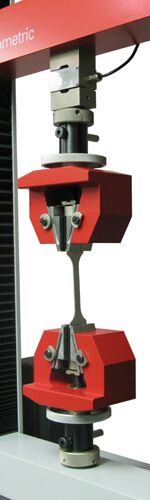

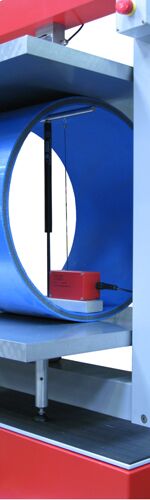

Extensive range of grips and fixtures for tension, compression, flexural, shear, peel and product testing etc.

A wide range of contacting and non-contacting extensometers is available
including laser and video models.

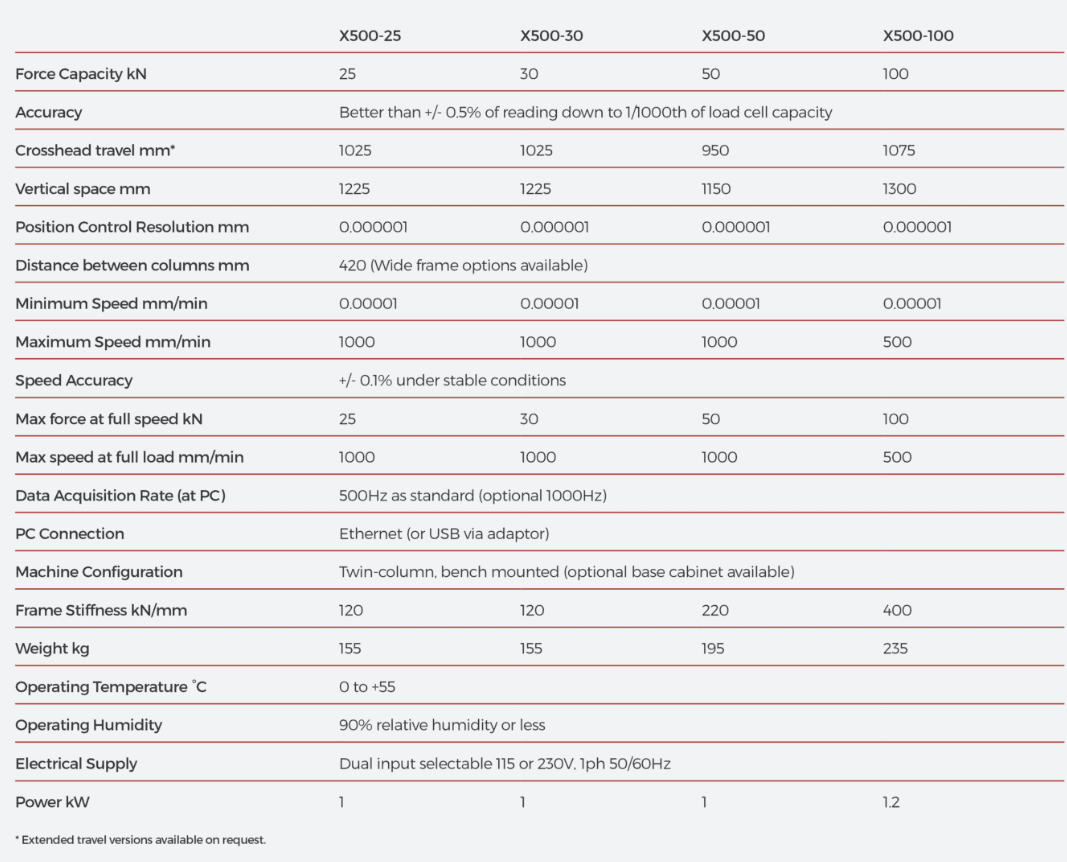

STANDARD SPECIFICATION

Machine Capacity 50kN
Speed Range 0.00001 to 1000mm/min
Crosshead Travel (excluding grips) 950mm
Distance Between Columns mm 420 (Wide frame options available)

BUILT FOR PRECISION

Force Measurement
Universally Calibrated, better than Grade 0.5 EN 7500-1, DIN 51221 ASTM E-4. AFNOR A03-501. Range 0.4% to 100% minimum. Automatic identification of load cell. Resolution 1 part in 500000. Electronic load cell protection.

Extension Measurement
Full frame length to a maximum resolution of 0.000001mm (selectable). Accuracy +/- 0.01mm. Absolute, relative and auxiliary modes in mm, inch and percent.

Speed Control
Class-leading low speed performance with speeds down to 0.00001mm/min. Drive system temperature and current protection.

Electronics System
Modular electronics system offers fast data transfer to the PC (up to 1000Hz) via high-speed Ethernet connection. Extensive input options allow the connection of a wide range of extensometers and accessories via simple plug-in interface modules.

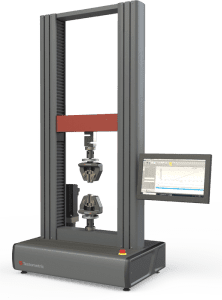

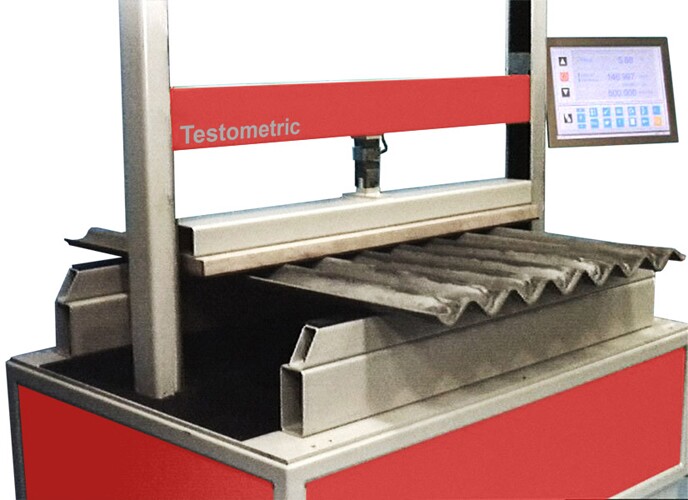

OPTIONAL TOUCHSCREEN PANEL PC

When paired with the optional IPC3 industrial-grade Panel PC with touchscreen control, the machine becomes a robust standalone system without the need for an external PC or Laptop.

Using the latest Windows 10 operating system and running a full version of Testometric’s winTest software the system allows complete control of the test machine and provides storage and access to unlimited test methods and results. The included mounting arm which attaches to the machine column T-Slots is fully adjustable for height, reach and viewing angle allowing the user to find the most ergonomic working position.

SOFTWARE

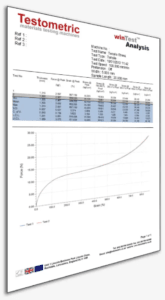

Comprehensive winTest™ Analysis universal windows software covering tensile, compression, peel, shear, tear, cyclic, creep and multi stage testing. It includes a wide range of industry standard test methods and facility to create and store an unlimited number of further test methods. There is automated storage of all test data and ease of export to other software packages such as word, excel, access and SPC systems for enhanced report generation.

Column 1 Column 2 Column 3 Column 4
Average Force Energy to Break Density Plastic Strain Ratio r
Average Force / Width Energy to Yield Chewiness Spring Rate Between Forces
Bending Modulus Initial Modulus Fracturability Spring Rate Between Deflections
Crush Force (Edge) Force @ Peak Hardness Young’s Modulus
Deflection @ 1st Collapse Force @ 1st Collapse Poisson’s Ratio Chord Modulus
Deflection @ Force (Stage) Force @ Elongation Plastic Strain Ratio r Tangential Modulus @ Strain
Dynamic Co-eff of Friction Force @ Proof Spring Rate Between Forces Tangential Modulus @ Stress
Elongation @ Break Force after Stage Spring Rate Between Deflections Secant Modulus @ Strain
Energy to Break Lowest Force Young’s Modulus Secant Modulus @ Stress
Energy to Yield Seam Opening Force Chord Modulus Strain @ Limit of Proportionality
Initial Modulus Seamed Strength Tangential Modulus @ Strain Force @ Rupture
Force @ Peak Static Co-eff of Friction Tangential Modulus @ Stress Strain @ Rupture
Force @ 1st Collapse Strain @ Break Secant Modulus @ Strain Average of 5 Highest Peaks
Force @ Elongation Strain @ Force (Load Cycle) Secant Modulus @ Stress Bend. Strength @ Peak
Force @ Proof Strain @ Force (Return Cycle) Strain @ Limit of Proportionality Bursting Strength
Force after Stage Strain @ Force (Stage) Force @ Rupture Average Peaks (Selected Region)
Lowest Force Stress @ Peak Strain @ Rupture Percentage Reduction of Area
Seam Opening Force Stress @ Proof Average of 5 Highest Peaks Secant Stiffness
Seamed Strength Stress @ Strain Bend. Strength @ Peak Stress @ % Height
Static Co-eff of Friction Stress @ Yield Bursting Strength Force @ Time
Strain @ Break T.E.A. Average Peaks (Selected Region) Deflection @ Time
Strain @ Force (Load Cycle) Tenacity Percentage Reduction of Area Time to Peak
Strain @ Force (Return Cycle) Transverse Rupture Strength Secant Stiffness Time to Failure
Strain @ Force (Stage) Unseamed Strength Stress @ % Height LOP
Stress @ Peak Young’s Modulus Force @ Time MOR
Stress @ Proof Chord Modulus Deflection @ Time Strain to LOP
Stress @ Strain Tangential Modulus @ Strain Time to Peak Strain to MOR
Stress @ Yield Tangential Modulus @ Stress Time to Failure Ym
T.E.A. Secant Modulus @ Strain LOP Average of 5 Highest Peaks
Tenacity Secant Modulus @ Stress MOR Spring Rate Between Forces
Transverse Rupture Strength Strain @ Limit of Proportionality Strain to LOP Density
Unseamed Strength Force @ Rupture Strain to MOR Chewiness
Young’s Modulus Strain @ Rupture Ym Hardness
Chord Modulus Average Peaks (Selected Region) Average of 5 Highest Peaks Poisson’s Ratio
Tangential Modulus @ Strain Percentage Reduction of Area Spring Rate Between Deflections Plastic Strain Ratio r
Tangential Modulus @ Stress Spring Rate Between Forces Density Spring Rate Between Deflections
Secant Modulus @ Strain Spring Rate Between Deflections Chewiness Young’s Modulus
Secant Modulus @ Stress Chewiness Hardness Chord Modulus
Strain @ Limit of Proportionality Fracturability Poisson’s Ratio Tangential Modulus @ Strain
Force @ Rupture Hardness Plastic Strain Ratio r Tangential Modulus @ Stress
Strain @ Rupture Plastic Strain Ratio r Spring Rate Between Forces Secant Modulus @ Strain
Average of 5 Highest Peaks Spring Rate Between Deflections Density Secant Modulus @ Stress
Bend. Strength @ Peak Young’s Modulus Chewiness Strain @ Limit of Proportionality
Bursting Strength Average Peaks (Selected Region) Hardness Force @ Rupture
Percentage Reduction of Area Poisson’s Ratio Strain @ Rupture
